Vacuum Suction Power Chart 2026 | AW, Pa & kPa Guide

Vacuum suction power chart comparing air watts, pascals, and kPa across 50+ models. Find exactly how much suction you need by floor type.

H Home Vacuum Zone |
Vacuum suction power comparison chart showing air watts and pascals ratings
Jump To

Affiliate Disclosure:Home Vacuum Zone is reader-supported. When you buy through links on our site, we may earn an affiliate commission at no additional cost to you. This does not influence our reviews or recommendations — we only recommend products we genuinely believe in.

Vacuum suction power is the single most misunderstood spec in the industry. Manufacturers use different units (air watts, pascals, kilopascals, CFM, water lift), making apples-to-apples comparisons nearly impossible. This reference database cuts through the confusion with real data from over 50 vacuum models, organized by type and converted into comparable units.

Choosing between a cordless and corded vacuum? Wondering if a robot vacuum is worth the investment? Just trying to understand what the numbers mean? Here’s the data.

Understanding Suction Power Units

Before comparing numbers, you need to understand what each unit actually measures — and why direct conversion between some units is impossible.

Air Watts (AW)

Air watts are the most complete suction measurement because they account for both airflow volume and suction pressure. The formula:

AW = Airflow (CFM) x Water Lift (inches) / 8.5

A vacuum must move a meaningful volume of air AND generate sufficient pressure to earn a high AW rating. Think of it this way: a vacuum with tremendous pressure but a tiny airflow opening (like sucking through a coffee stirrer) would score poorly in air watts despite impressive raw suction force.

Who uses AW: Dyson, Miele, Samsung, LG, Tineco, and most cordless/canister/upright manufacturers.

Pascals (Pa) and Kilopascals (kPa)

Pascals measure static suction pressure only — the force a vacuum can exert to lift debris from a surface. They do not account for how much air moves through the system.

  • 1 kPa = 1,000 Pa
  • 1 inch of water lift = 249 Pa

Who uses Pa: Roborock, Ecovacs, Eufy, Dreame, iLife, and most robot vacuum manufacturers.

Why Direct AW-to-Pa Conversion Does Not Work

You can’t just convert 240 AW to a Pa equivalent. They measure fundamentally different things. Air watts include airflow volume; pascals don’t. A robot vacuum rated at 10,000 Pa may generate strong localized pressure but moves far less total air than a 150 AW canister. That’s why robot vacuums generally can’t match full-size vacuums in deep carpet cleaning despite seemingly high Pa numbers.

Other Units You May Encounter

UnitWhat It MeasuresWhere You See It
CFM (Cubic Feet per Minute)Airflow volumeShop vacs, commercial vacuums
Water Lift (inches of H₂O)Static pressureShop vacs, central vacuums
Watts (W)Electrical consumptionEU labels, NOT a suction metric
AmpsElectrical current drawUS marketing, NOT a suction metric
HP (Horsepower)Motor output ratingShop vacs (often “peak HP”)

Pressure Unit Conversion Table

For units that measure the same property (static pressure), direct conversion is straightforward:

PakPaInches of Watermbarmm Hg
2490.2491.02.491.87
5000.52.05.03.75
1,0001.04.010.07.5
2,0002.08.020.015.0
5,0005.020.150.037.5
10,00010.040.1100.075.0
25,00025.0100.4250.0187.5

Suction Power by Vacuum Type

Different vacuum categories operate in entirely different suction ranges. Here are typical and high-end ranges for each type, based on manufacturer specs from models in our database.

Typical Suction Ranges

Vacuum TypeTypical RangeHigh-End ModelsUnit
Handheld15-40 AW40+ AWAir Watts
Robot2,000-6,000 Pa8,000-10,000 PaPascals
Cordless Stick80-150 AW200-262 AWAir Watts
Upright150-250 AW290+ AWAir Watts
Canister150-250 AW300+ AWAir Watts
Backpack/CommercialHigh CFM1,188 CFMCFM
Central Vacuum400-700 AW700+ AWAir Watts
Shop Vac3.0-6.5 Peak HP6.5+ Peak HPHorsepower

The hierarchy is clear: handhelds at the bottom, central vacuum systems and commercial machines at the top. But suction alone doesn’t determine cleaning effectiveness. Brush agitation, airflow path design, and beater bar configuration all play critical roles.

Cordless Stick Vacuum Suction Database

Cordless vacuums have made enormous progress. Five years ago, 100 AW was excellent. Today, the Dyson Gen5detect delivers 262 AW, approaching corded upright territory.

ModelSuction PowerMotor TypeRuntimeNotes
Dyson Gen5detect262 AWDyson Hyperdymium70 minStrongest cordless available
Dyson V15 Detect240 AWDyson Hyperdymium60 minLaser dust detection
Samsung Bespoke Jet210 AWDigital Inverter60 minAll-in-one clean station
Roborock H60 Ultra210 AWBrushless90 min (Eco mode)Hot water self-cleaning
LG CordZero A9 Ultimate265 AWSmart Inverter60 minDual battery option
Dyson V11 Torque Drive185 AWDigital V1160 minLCD power display
Tineco Pure One S15 Pro120 AWBrushless40 miniLoop smart detection; AW rating not published
Dyson V10 Animal/Absolute150 AWDigital V1060 minIn-line configuration
Dyson V12 Detect Slim150 AWHyperdymium60 minLightweight laser model
Miele Triflex HX2 Pro150 AWVortex60 min3-in-1 design
Miele Triflex HX1 Cat & Dog140 AWVortex60 minHEPA lifetime filter
Tineco A11 Hero120 AWBrushless40 minBudget all-rounder
Dyson V8 Absolute115 AWDigital V840 minStill a solid performer
Dyson Omni-glide100 AWHyperdymium20 minHard floor specialist
Shark Rocket Ultra-Light100 AWCorded motorUnlimitedCorded stick hybrid
Hoover ONEPWR Evolve Pet40 AWBrushless35 minBudget cordless

For a full comparison of cordless versus corded performance trade-offs, see our cordless vs corded vacuum guide.

Upright Vacuum Suction Database

Uprights remain the suction kings of the portable vacuum world, benefiting from larger motors and direct power connections. Models like the Dyson Ball Animal 3 are approaching the effective cleaning power of older central vacuum systems.

ModelSuction PowerMotor TypePower SourceNotes

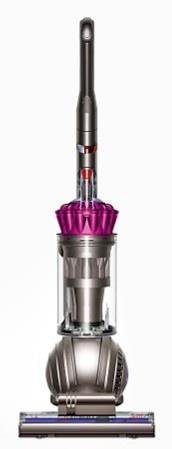

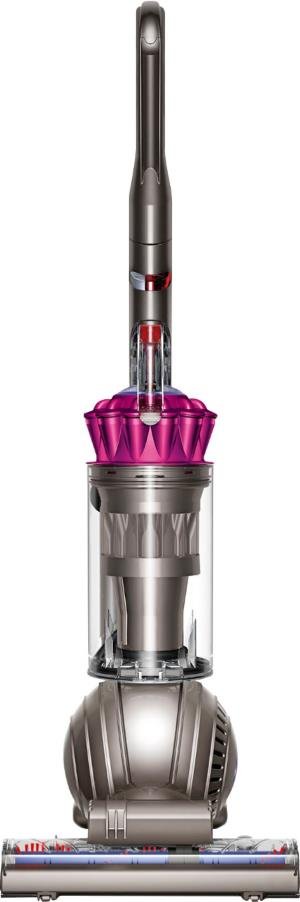

Dyson Ball Animal 3 / Extra290 AWBall technologyCordedStrongest portable upright

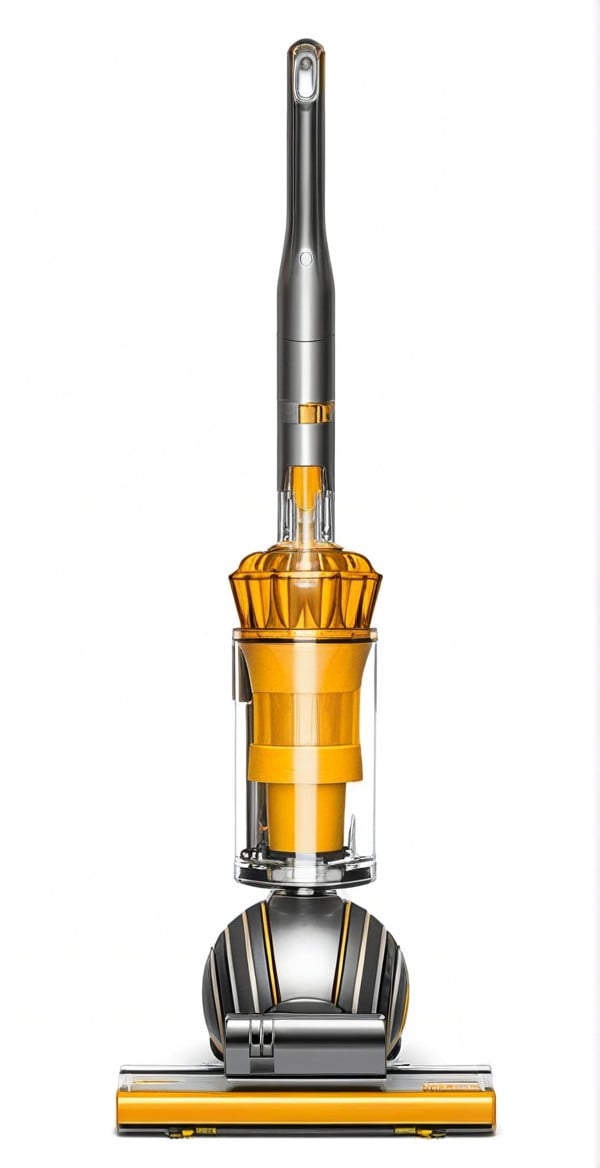

Dyson Big Ball Multi Floor 2250 AWRadial Root CycloneCordedCanister-upright hybrid
Shark Stratos UprightCleanSense IQDuoCleanCordedAuto-adjusting suction
Shark Vertex DuoClean PowerFinsVertex TechDuoCleanCordedDual brush roll system
Shark Apex DuoClean AZ1002Powered Lift-AwayDuoCleanCordedDetachable canister
SEBO Automatic X5Not specifiedS-classCordedAuto height adjustment
Miele Dynamic U1Not specifiedVortexCordedSealed system filtration

Many upright manufacturers don’t publish AW ratings, relying instead on proprietary descriptors (“CleanSense IQ,” “Vertex technology”). This makes direct comparison frustrating, and it’s a reason the industry needs standardized testing. If you’re comparing upright vs canister vacuums, focus on cleaning test results rather than raw suction numbers.

Canister Vacuum Suction Database

Canister vacuums offer strong suction with superior maneuverability. Miele dominates this category with consistent AW ratings across their lineup.

ModelSuction PowerFiltrationNotes
Dyson Big Ball Multi Floor (Canister)250 AWRadial Root CycloneStrongest canister
Miele Complete C3 Cat & Dog180 AWHEPA AirCleanPet specialist
Miele Complete C3 Marin150 AWHEPA AirCleanPremium all-surface
Miele Complete C3 Calima150 AWHEPA AirCleanQuiet at 64 dB
Miele Compact C1 Turbo TeamNot specifiedAirCleanBudget Miele

For a deep dive into the Miele lineup, see our Miele C1 vs C2 vs C3 comparison. If you are weighing Miele against Dyson, our Miele vs Dyson comparison breaks down the suction and filtration trade-offs.

Robot Vacuum Suction Database

Robot vacuums use pascals (Pa) exclusively. The suction race has escalated fast, from 2,000 Pa entry-level models to the Roborock S8 MaxV Ultra’s 10,000 Pa. Real-world cleaning, though, depends heavily on brush design, navigation efficiency, and how many passes the robot makes over each area.

ModelSuction PowerNoise LevelNavigationNotes
Roborock S8 MaxV Ultra10,000 Pa67 dBLiDAR + CameraStrongest robot available
Narwal Freo X Ultra8,200 Pa53 dBLiDARQuietest high-suction robot
Ecovacs Deebot X2 Omni8,000 Pa67 dBLiDAR + CameraSquare design for corners
Dreame L20 Ultra7,000 Pa63 dBLiDARAuto mop lifting
Roborock S8 Pro Ultra6,000 Pa67 dBLiDAR + CameraVibraRise mopping
Ecovacs Deebot T20 Omni6,000 Pa67 dBTrueDetect 3DHot water mop wash
Roborock Q-Revo5,500 Pa67 dBLiDARBudget all-in-one station
Ecovacs Deebot N10 Max4,300 Pa67 dBTrueMappingMid-range value
Roborock Q7 Max4,200 Pa67 dBLiDARValue-focused
iLife V9e3,000 Pa65 dBGyroscopeBudget option
Roborock Q52,700 Pa67 dBLiDAREntry-level LiDAR
Eufy RoboVac G30 Edge2,000 Pa55 dBSmart DynamicUltra-quiet
Eufy RoboVac 11S Max2,000 Pa55 dBBoostIQBudget favorite
Eufy RoboVac X8 Hybrid2x 2,000 Pa56 dBiPathTwin-turbine design
Shark IQ Robot AV2501AE1,000 Pa65 dBIQ NavigationSelf-emptying

For help choosing between brands, see our Deebot vs Roomba, Eufy vs Roomba, and Roomba vs Samsung comparisons. Our best robot vacuum roundup is updated regularly with the latest models.

Central Vacuum Suction Reference

Central vacuum systems deliver suction power that portable vacuums cannot approach, thanks to large motors permanently installed in utility areas. The NuTone PurePower PP500 produces 500 AW — nearly double the strongest portable upright.

ModelSuction PowerNoise LevelCoverageNotes

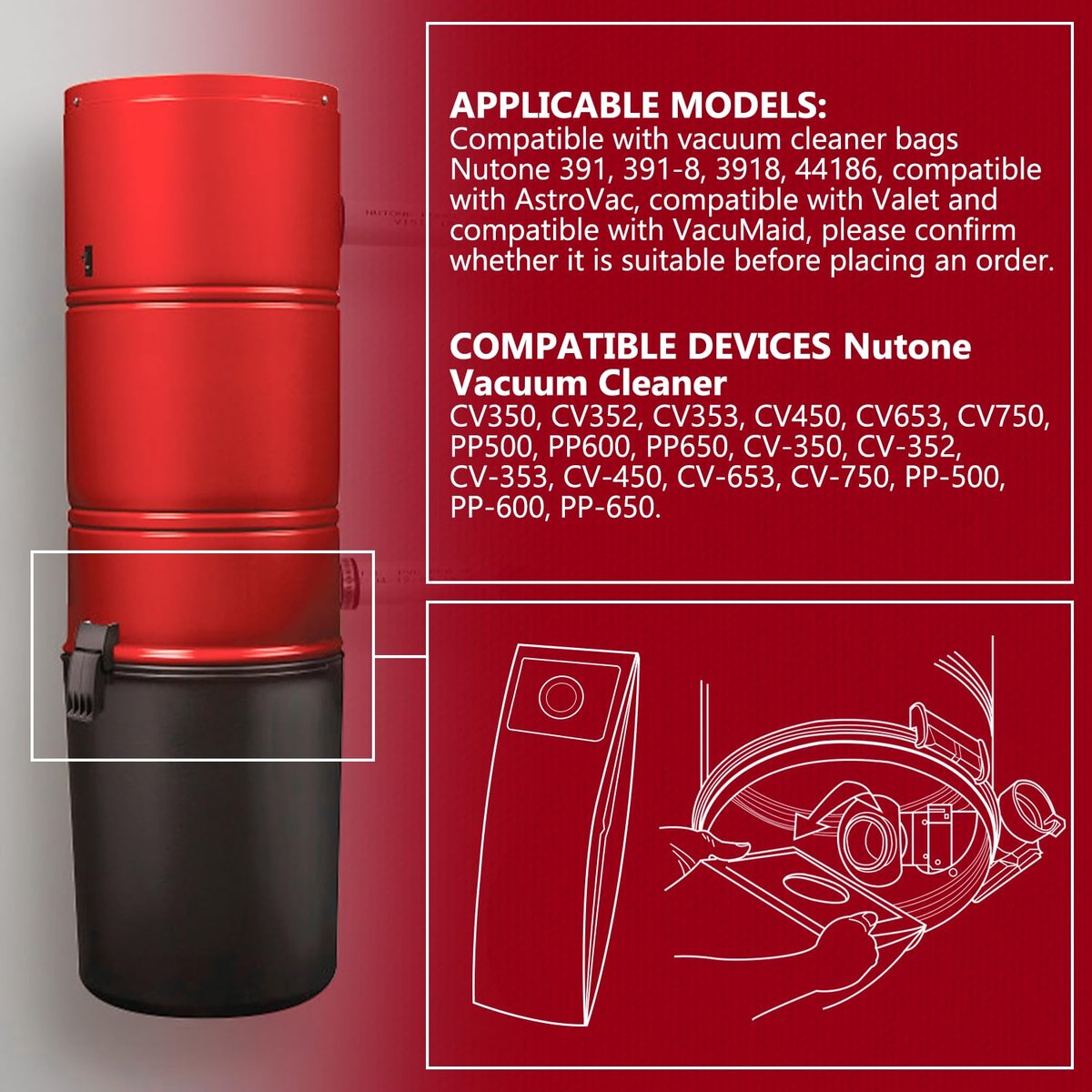

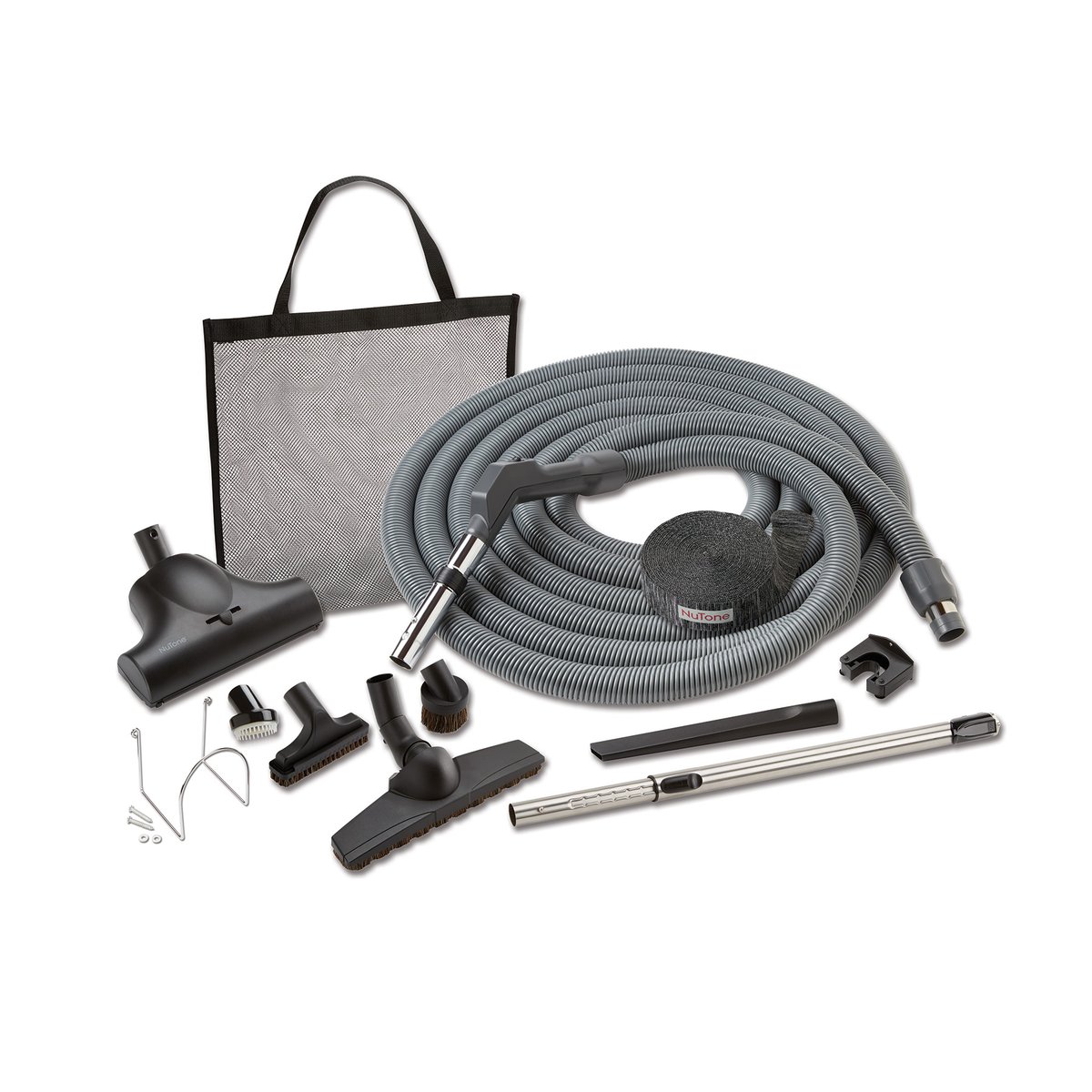

NuTone PurePower PP500500 AW62 dB (at unit)Up to 8,000 sq ftIndustry benchmark
CanAvac LS-590 (central vacuum brand)Not specified65 dB (at unit)Up to 6,000 sq ftCanadian made; not in product database

Central vacuums also have a noise advantage — the motor is typically in a garage or basement, so you only hear the airflow at the cleaning head. Learn more in our central vacuum system guide.

How Much Suction Do You Actually Need?

This is the most practical question, and the answer depends entirely on what you’re cleaning. More suction isn’t always better. Excessive suction makes vacuums harder to push on carpet, increases noise, and wastes energy on hard floors.

Suction Recommendations by Floor Type

Floor TypeMinimum SuctionRecommendedWhy
Hardwood / Tile80 AW / 2,000 Pa100-150 AW / 4,000 PaDebris sits on surface; excess suction unnecessary
Low-Pile Carpet100 AW / 3,000 Pa150-265 AW / 5,000 PaModerate agitation needed to reach carpet base
Medium-Pile Carpet150 AW / 5,000 Pa200-250 AW / 6,000 PaMust penetrate carpet fibers
High-Pile / Shag265 AW / 6,000 Pa250+ AW / 8,000+ PaDeep fiber penetration essential
Pet Hair (any surface)150 AW / 4,000 Pa200+ AW / 6,000+ PaHair wraps and embeds; strong extraction needed
Area Rugs (delicate)80 AW / 2,000 Pa100-150 AWToo much suction damages fringe and fibers
Car Interior40 AW80-120 AWTight spaces limit effective suction anyway

For guidance on specific floor types, see our guides on vacuums for hardwood floors, high-pile carpet vacuums, and vacuums for Berber carpets.

The Suction Myth: Why Bigger Numbers Are Not Always Better

A vacuum rated at 290 AW (like the Dyson Ball Animal 3) is genuinely powerful, but that power is overkill for hardwood floors and can make the vacuum physically difficult to push across plush carpet. The best vacuums offer variable suction settings:

  • Use low power (80-100 AW) for hardwood, tile, and delicate rugs
  • Use medium power (150-265 AW) for low-pile carpet and general use
  • Use max power (250+ AW) for deep carpet cleaning and embedded pet hair

This is one reason Miele’s 6-speed rotary suction dial remains popular among cleaning professionals — it provides precise control rather than just “low” and “high” toggles.

Suction Loss Over Time: What to Expect

All vacuums lose some suction over their lifetime. Understanding why helps you maintain your vacuum and know when it’s time for a replacement.

Common Causes of Suction Loss

  1. Full bag or dustbin — the most common cause. Empty when half full, not when completely packed
  2. Clogged filters — wash or replace per manufacturer schedule (typically every 1-3 months)
  3. Blocked hose or brush roll — check for hair wraps and debris monthly
  4. Worn seals and gaskets — creates air leaks that bypass the suction path
  5. Motor degradation — brush motors lose 10-20% suction over 5-7 years; brushless motors degrade much slower

Bagged vs Bagless Suction Behavior

Bagged vacuums experience a gradual, linear decline in suction as the bag fills. Bagless cyclonic vacuums maintain more consistent suction until the bin is nearly full, then drop sharply. Neither system is inherently better. It’s a trade-off between consistency and convenience.

How Vacuum Suction Is Measured

Understanding test methodology helps you evaluate manufacturer claims critically.

IEC 60312 (International Standard)

The International Electrotechnical Commission’s IEC 60312 standard defines how vacuum suction and cleaning performance should be tested. It measures:

  • Air watts under controlled conditions with standardized test surfaces
  • Dust pickup efficiency on carpet and hard floors
  • Dust re-emission (how much escapes the filtration system)
  • Edge cleaning performance

ASTM F558 (US Standard)

The American Society for Testing and Materials uses ASTM F558 to measure airflow and suction. This standard provides the CFM and water lift numbers you see on shop vacs and some commercial models.

The Problem with Manufacturer Ratings

Most suction numbers in this database come from manufacturer specifications, not independent lab testing. Manufacturers test under ideal conditions: clean filters, empty bins, maximum power, no resistance from floor contact. Real-world suction is typically 15-30% lower than rated specs.

Want more reliable data? Independent testing organizations like the Carpet and Rug Institute (CRI) provide it. See our vacuum certification standards guide for details on CRI Gold, HEPA, and other certifications.

Suction Power vs Cleaning Performance

High suction numbers grab headlines, but they tell an incomplete story. Actual cleaning effectiveness depends on the complete system:

  • Airflow path design — how efficiently air moves from the nozzle to the filter
  • Brush roll agitation — mechanical action loosens embedded dirt that suction alone cannot reach
  • Nozzle width and seal — wider nozzles cover more area; better seals prevent suction loss at the floor
  • Filtration resistance — HEPA filters create more airflow resistance than standard filters, reducing effective suction
  • Dustbin/bag capacity — suction drops as the container fills

That’s why a 150 AW Miele canister with an electrobrush often outcleans a 265 AW generic upright on carpet. Superior engineering at every stage of the airflow path compensates for lower peak suction. For a deeper look at how these systems work together, see our guide on how vacuum cleaners work.

Methodology and Data Sources

Suction power ratings in this database come from manufacturer specifications, product manuals, and official press materials. All figures represent maximum suction unless otherwise noted. We update the database as new models are released and verified.

For models where manufacturers don’t publish standardized suction ratings (common with Shark, SEBO, and some Miele models), we note the proprietary descriptor used. The industry would benefit from standardized AW or Pa ratings across the board.

Where independent test data from CRI, consumer testing organizations, or verified third-party labs exists, we’ve noted discrepancies with manufacturer claims.
